What are the most common prototype design mistakes that cause manufacturing delays?

Prototype delays start with avoidable design mistakes: weak DFM/DFA, unclear stack-up, risky BOMs, and messy files. Fix them early to ramp faster.

Most manufacturing delays don’t come from one “big failure.” They come from a chain reaction: a rushed prototype, missing manufacturability checks, unclear files, and a BOM that looks fine on a laptop but falls apart in the real supply chain.

If you’re an OEM, brand owner, EMS partner, design house, lab team, or a startup trying to hit a ship date, you’ve probably seen the same story: the prototype works, everyone feels good, then mass production turns into an endless loop of DFM questions, ECOs, and re-builds.

This guide breaks down the most common prototype design mistakes that slow down fabrication, assembly, and ramp. It also ties each mistake to practical fixes you can use when you work with a China PCB B2B factory for quick-turn prototyping, stable batch production, and OEM/ODM delivery like MC PCB Co., Ltd..

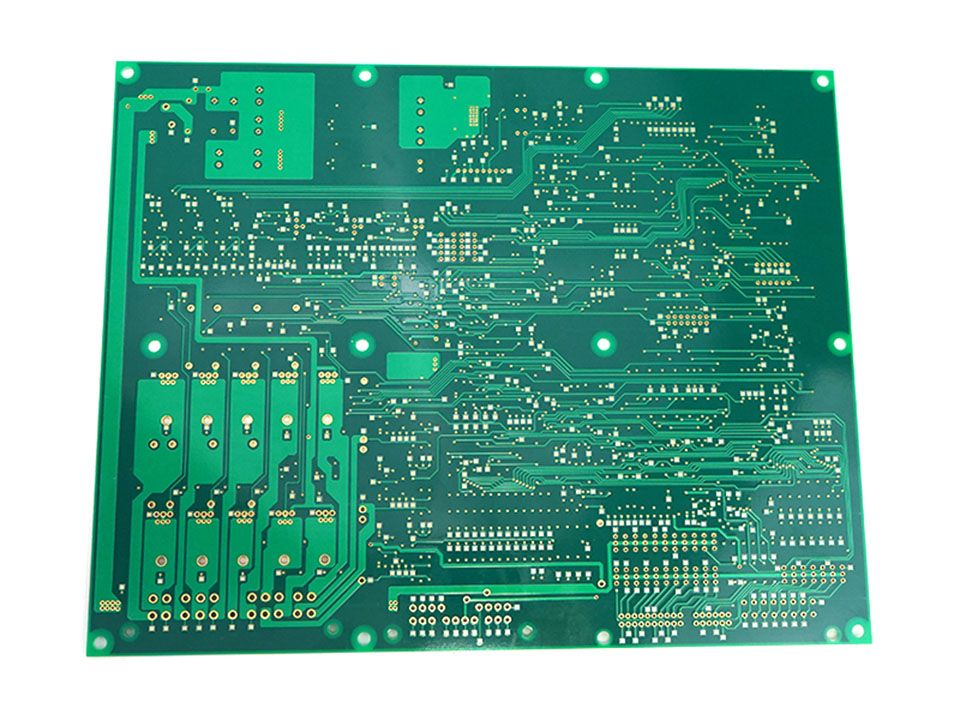

What are the most common prototype design mistakes that cause manufacturing delays

Prototype design mistakes that break the schedule

Before we go deep, here’s the core idea: your prototype must prove repeatability, not just functionality. A board that boots once is nice. A board that builds cleanly across batches, survives assembly, and passes test every time is what keeps the schedule alive.

Summary table: mistakes that cause manufacturing delays

Prototype design mistakeWhat it breaks on the factory floorTypical delay triggerFast fix that actually works
Skipping DFM earlyFab yield, drill/etch limits, impedance control windowsDFM loop + file re-spinRun a DFM review before ordering boards; lock stack-up assumptions early
Ignoring DFAAssembly time, rework rate, throughput“Can’t place / can’t solder / can’t inspect” issuesValidate pick-and-place, soldering access, rework access, inspection access
Weak tolerance stack-upConnector fit, enclosure fit, heatsink fitMechanical interference + retoolingDo worst-case stack-up on critical fits, not “nominal only”
Treating prototype as production-readySpecs drift, uncontrolled ECOsLate-stage redesignSeparate EVT/DVT/PVT goals; freeze what you can before scaling
BOM risk (single-source parts)Purchasing, kitting, line-stop riskLong lead-time surpriseBuild alternates early, approve substitutes, avoid unicorn parts
Incomplete manufacturing packageCAM questions, wrong builds, scrapBack-and-forth clarificationSubmit a clean fab/assembly pack with revision control
Unclear PCB stack-upWarpage, impedance missesStack-up confirmation delaysDefine stack-up, materials, copper weights, impedance targets in writing
No panelization planningSMT efficiency, depanel damageRe-panel + fixture changesDecide panel strategy early, include tooling rails, fiducials, breakaway style
Test strategy comes too lateLow yield at first buildDebug loop + reworkAdd test points, define ICT/FCT approach, plan firmware flashing flow

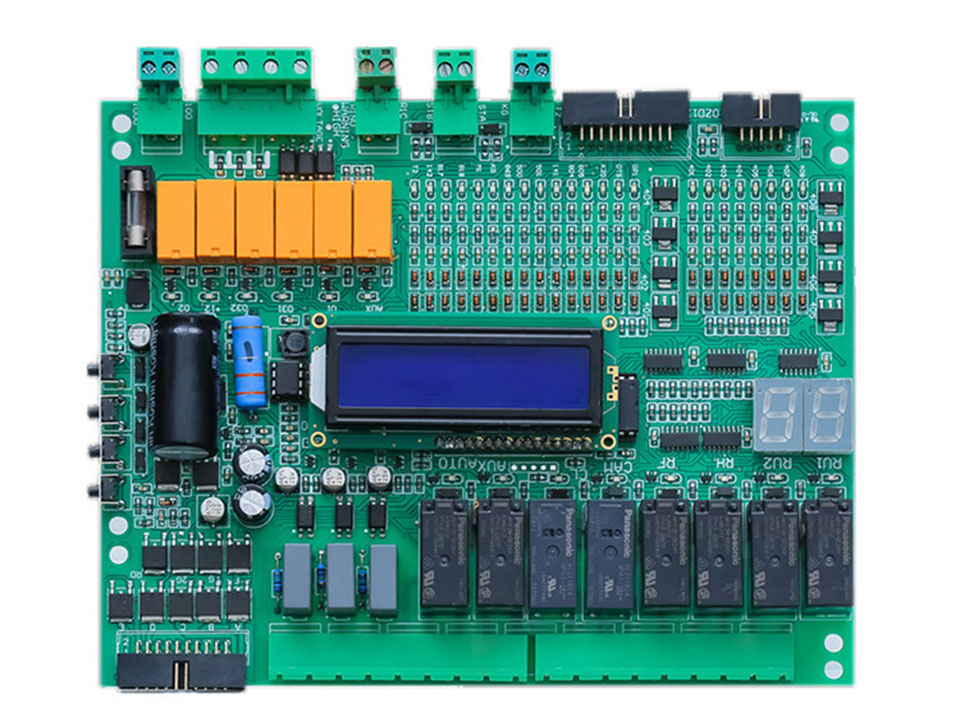

What are the most common prototype design mistakes that cause manufacturing delays

DFM (Design for Manufacturing): the fastest way to avoid a re-spin

Skipping DFM early

A lot of teams treat DFM like a “nice-to-have” that happens after the prototype works. That’s backwards. In real production, DFM drives whether your fab house can build the board fast and consistently, or whether they’ll bounce questions back for days.

What it looks like in real life

  • Your RF board needs impedance control, but the stack-up assumptions aren’t written down.
  • Your fine-pitch BGA escapes look clean in CAD, but the fabricator flags via-in-pad rules and solder mask clearance.
  • Your copper balance is uneven, and warpage shows up at reflow.

What to do instead

  • Lock your stack-up decisions early (materials, thickness, copper weights, impedance targets).
  • Treat DFM questions as schedule insurance, not “factory noise.”
  • If you’re building HDI or fine-pitch work, route it through an Advanced PCB capability path from day one.

DFA (Design for Assembly): where “works once” turns into “builds every time”

Ignoring DFA

DFA issues don’t always show up in a hand-soldered prototype. They show up when SMT starts running at speed.

Common DFA traps

  • Parts packed too tight for nozzle clearance or rework.
  • Poor component orientation consistency (slows placement, increases errors).
  • No room for AOI visibility on joints.
  • Thermal mass mismatch that creates tombstoning or cold joints.

Practical fix

  • Build your layout with the assembly line in mind: placement access, inspection access, and rework access.
  • If you’re going turnkey, align early with a PCB Assembly partner so the DFM/DFA feedback happens before you cut boards.
What are the most common prototype design mistakes that cause manufacturing delays

Tolerance stack-up: the silent schedule killer

Weak tolerance stack-up

Tolerance problems feel “small” until you hit a connector that won’t mate, a board that doesn’t sit flat, or mounting holes that don’t line up with a chassis.

Where it hits hardest

  • Board-to-enclosure fit
  • Connector alignment (USB, HDMI, board-to-board mezzanine)
  • Heatsinks, thermal pads, and standoffs
  • Rigid-flex bend zones and keepouts

What to do

  • Identify “critical-to-fit” features and run worst-case stack-up.
  • Don’t rely on nominal dimensions or “it should be fine.”
  • If you build rigid-flex or flex cables, keep the manufacturing constraints visible early, not after EVT.

Prototype vs production: different goals, different rules

Treating prototype as production-ready

A prototype often uses shortcuts: manual assembly, one-off fixes, special parts, or “temporary” wiring. That’s normal. The mistake happens when the team forgets to switch modes before ramp.

A real scenario A control board passes bench tests, then the first pilot batch comes back with inconsistent soldering around high-thermal areas. The layout wasn’t built for repeatable reflow, and the team starts patching instead of redesigning. Now you’ve got a schedule slip and a yield problem.

What to do

  • Set clear build intent: EVT proves function, DVT proves robustness, PVT proves production flow.
  • Freeze what you can before you scale. Constant ECO churn destroys momentum.
  • Use a stable PCB Fabrication flow and lock revision control with your factory.
What are the most common prototype design mistakes that cause manufacturing delays

BOM risk: “line stop” starts in your parts list

BOM risk (single-source parts)

You can’t ship boards you can’t kit. BOM risk becomes brutal in batch manufacturing and wholesale orders, especially for OEM/ODM programs.

Red flags

  • Single-source components with no approved alternates
  • End-of-life risk you didn’t track
  • Footprints that only fit one exact package variant
  • “Prototype-only” parts sneaking into the release BOM

What to do

  • Create alternates early, and qualify substitutes before you need them.
  • Use footprints that support safe second sources where possible.
  • Align sourcing strategy with your production partner, especially if you’re buying in volume.

Documentation and revision control: stop losing days to avoidable questions

Incomplete manufacturing package

Manufacturing delays often come from simple gaps: missing drill files, unclear notes, mismatched BOM references, or assembly drawings that don’t match the Gerbers.

What “good” looks like

  • Gerbers + drill files + netlist (as needed)
  • Fabrication notes: stack-up, impedance targets, surface finish, controlled tolerances
  • Assembly package: BOM with MPNs, centroid file, assembly drawing, polarity marks, programming notes
  • Clear revision naming (no “final_v7_really_final”)

If you want fewer email loops, treat your release package like a product, not an attachment.

PCB stack-up, impedance control, and copper balance: where PCB delays hide

Unclear PCB stack-up

For high-speed, RF, or dense multilayer boards, the stack-up is not optional detail. It’s the foundation.

Why it delays production

  • The factory can’t confirm impedance without a defined stack-up.
  • Material availability or thickness constraints can force rework.
  • Unbalanced copper can lead to warpage, which causes assembly defects and rework.

What to do

  • Specify stack-up, materials, copper weights, and impedance targets clearly.
  • If your build needs advanced control (HDI, fine pitch, RF), route it through capability planning and choose the right board tech up front via your Capabilities reference.

Panelization and depanel: don’t let a “small detail” wreck SMT efficiency

No panelization planning

Panel strategy affects throughput, handling, AOI, and even field reliability (bad depanel can crack joints).

Common mistakes

  • No tooling rails, so assembly struggles with conveyors and clamps
  • Weak fiducial strategy
  • Bad breakaway method (stress damage near connectors or BGAs)
  • Ignoring how boards will be tested and programmed in-panel

What to do

  • Decide panel size and breakaway style early.
  • Place global and local fiducials with real assembly flow in mind.
  • Keep keepout zones around mouse-bites/V-cuts near sensitive parts.

Quality control and on-time delivery: build the “factory handshake” early

Quality isn’t only inspection. It’s how you design, document, and hand off work so production doesn’t stall.

If you’re running OEM/ODM or wholesale batches, you want a partner that supports:

  • quick-turn prototyping
  • stable mass production
  • consistent QC gates
  • on-time delivery worldwide

That’s exactly the promise behind Quality and factory-side process control, which matters most when you scale beyond a few prototypes.

Practical manufacturing delay checklist for OEM/ODM and batch buyers

Use this as a quick gut-check before you release files.

Release checklist keywords: DFM, DFA, stack-up, BOM, test

AreaQuestions that prevent delays
DFMDid you define stack-up, impedance targets, copper weights, and surface finish?
DFACan SMT place, solder, inspect, and rework the design without hacks?
Tolerance stack-upDid you validate connector/enclosure/heatsink fits in worst-case?
BOMDo you have alternates for risky parts and footprints that allow substitution?
DocumentationAre fab + assembly files complete, consistent, and revision-controlled?
PanelizationDid you plan tooling rails, fiducials, breakaway, and test/program flow?
TestDo you have test points, a flashing plan, and a defined ICT/FCT approach?

When you’re ready to hand off, point your team to the right production path:

  • Start with your Products scope to align board type and complexity.
  • If you need a clean process from prototype to ramp, use a one-stop flow that matches your build intent and volume goals.

If you want fewer surprises, the simplest move is to get your factory in the loop early, while changes are still cheap and fast. For project intake and engineering questions, use the fastest path: Contact Us.
