Panelized 2-Layer Speaker PCB OEM Manufacturer

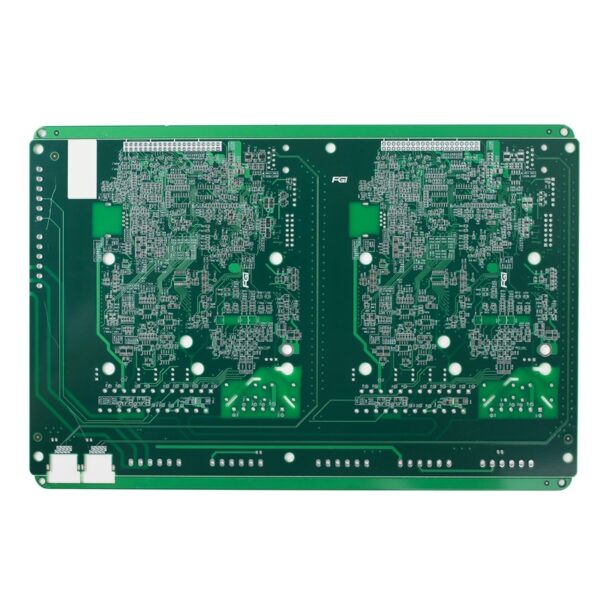

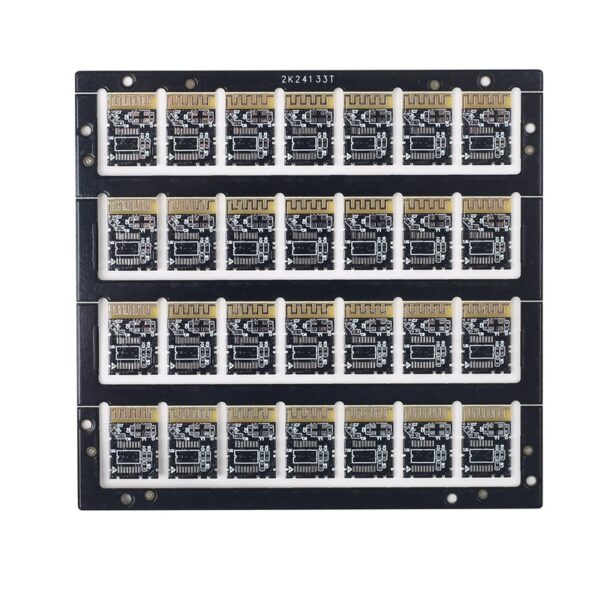

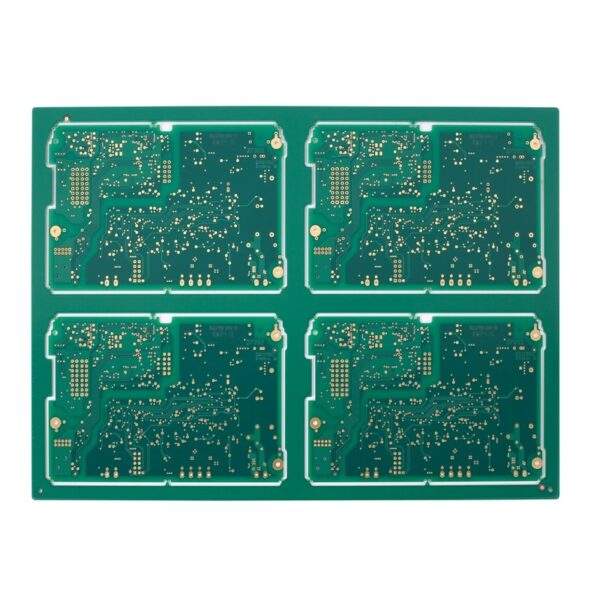

this pcb is engineered for audio builds where consistency matters as much as sound. the images show a multi-up panel layout, letting multiple boards run through fabrication and assembly together—improving yield, reducing handling damage, and keeping unit cost predictable. the clean 2-layer routing and well-defined component footprints support fast smt placement, while the through-hole areas and connector zones are positioned for secure mechanical strength in finished speaker products.

gold-finished contact pads and tightly controlled solder mask openings help maintain dependable solder joints and stable signal paths over long operating cycles. that can translate into fewer intermittent faults, lower noise risk, and better long-term reliability in powered speakers, soundbars, amplifier modules, and audio interface boards.

for b2b oem delivery, the build can include pcb fabrication, stencil and reflow process control, aoi inspection, and functional testing aligned to your audio requirements. the goal is simple: a board that goes from panel to product smoothly, and keeps performing after thousands of power-on hours.
