Flexible Multilayer Control PCB With FPC Connector B2B

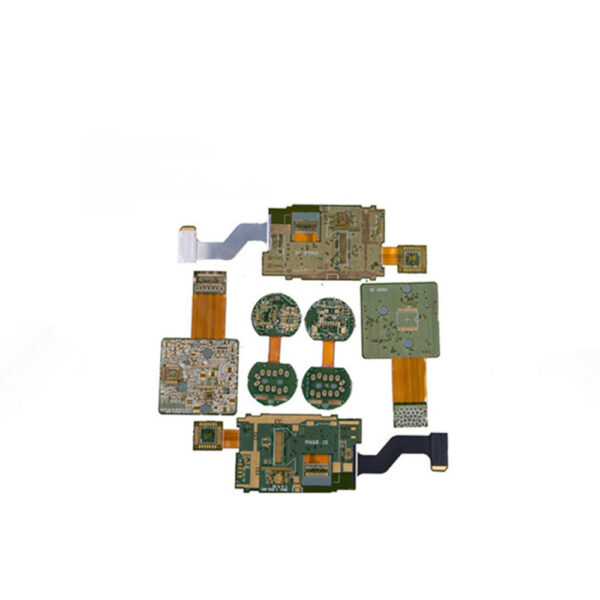

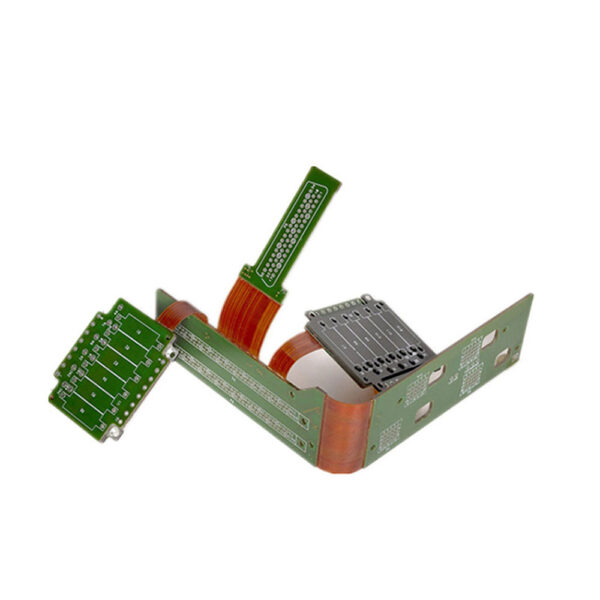

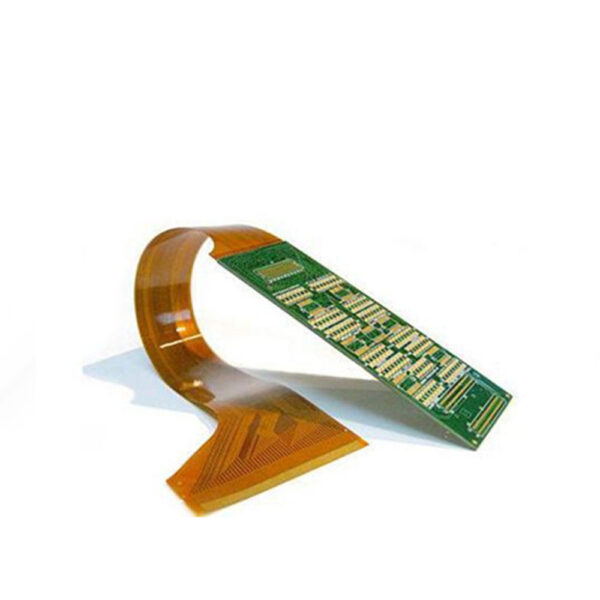

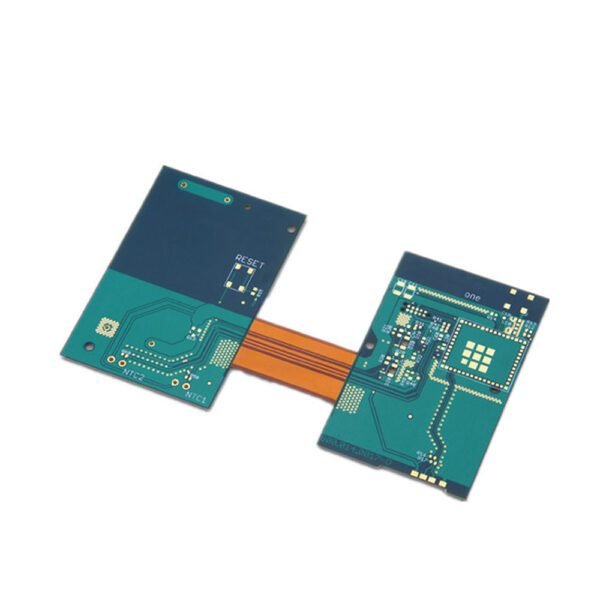

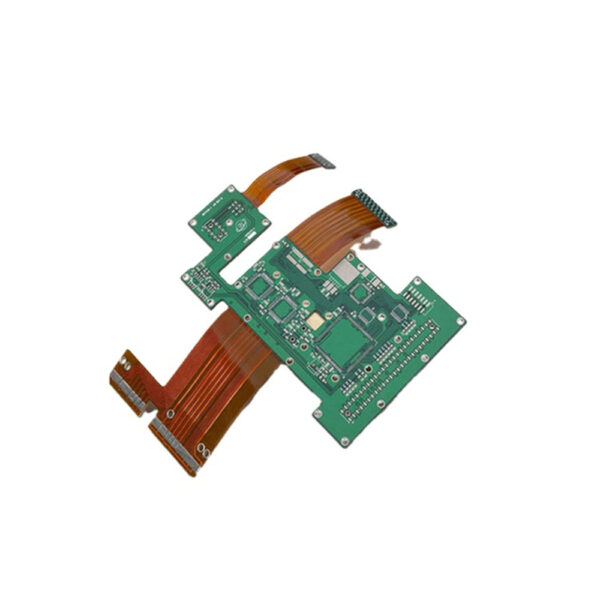

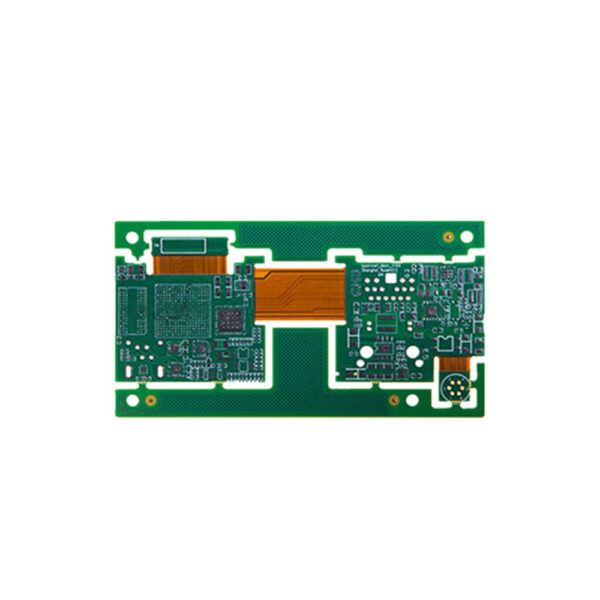

This product is a flexible multilayer control PCB designed for space-limited electronics where rigid boards cannot easily fit. The image shows a compact rigid section paired with flexible FPC tails, allowing the board to fold, route through narrow housings, and connect to displays or sub-modules without bulky wiring. This structure is commonly used in tablet-style devices, handheld terminals, and embedded control products that need reliable connections across moving or stacked parts.

As a Dongguan, China PCB factory, we focus on build accuracy and consistency for flexible and multilayer designs. Fine traces, dense pads, and controlled layer alignment help maintain signal integrity for high-density layouts. We can support common requirements such as impedance control, specified copper thickness, and high-Tg material selections where thermal stability matters. For flexible sections, we can tailor coverlay opening, stiffener options, and bending-area guidelines to improve durability during assembly and long-term use.

From quick prototypes to stable volume production, we provide manufacturing-ready outputs with clear process control, including AOI and electrical testing to reduce hidden defects. If your project targets global B2B delivery, we can also align with RoHS requirements and provide documentation that makes sourcing and repeat ordering straightforward.
