B2B OEM Multi Layer HDI PCB Fabrication For Fine Pitch

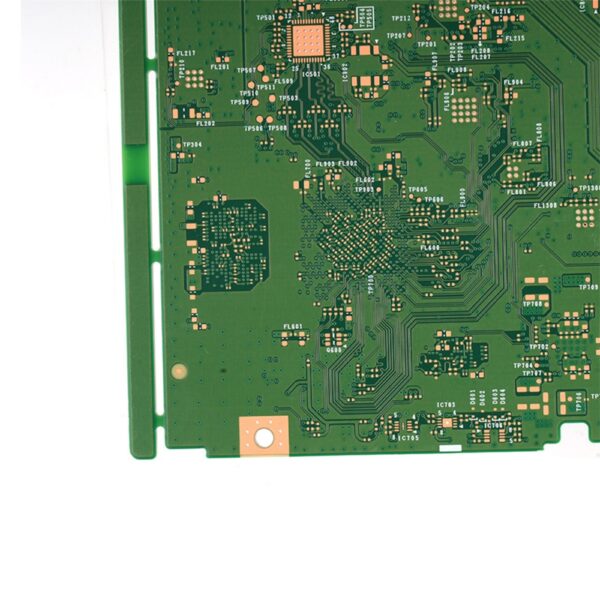

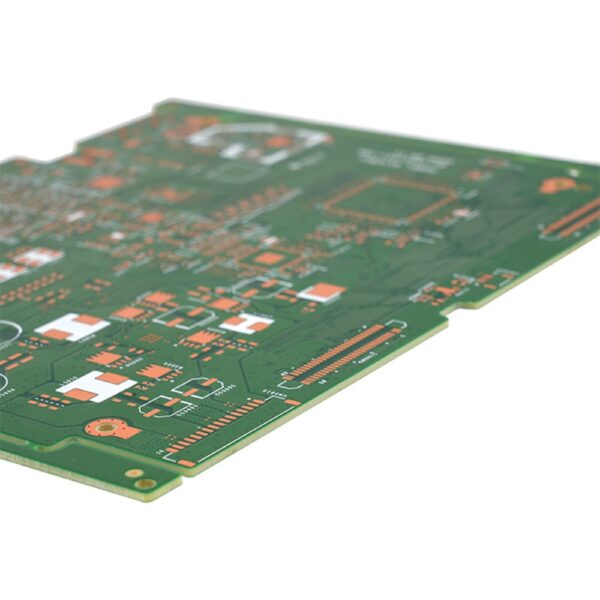

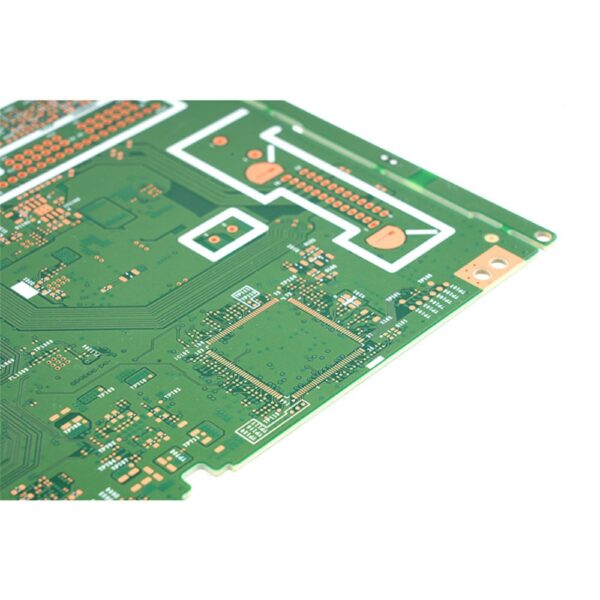

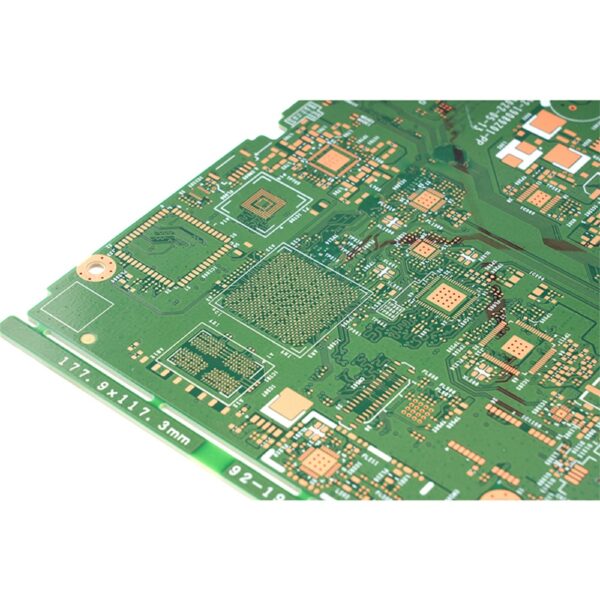

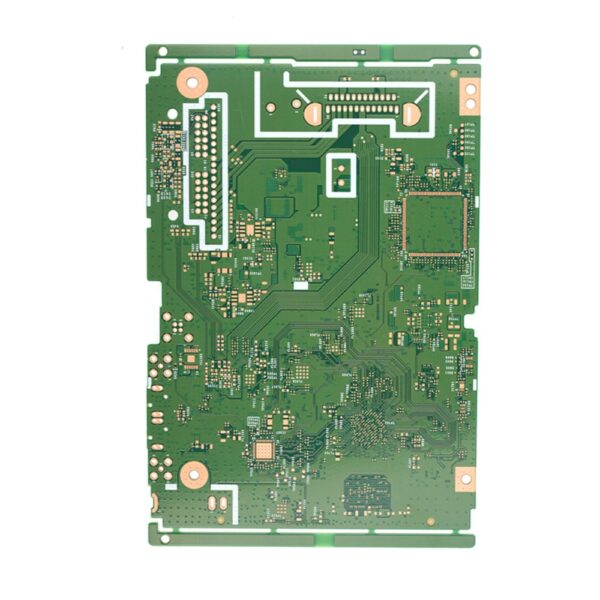

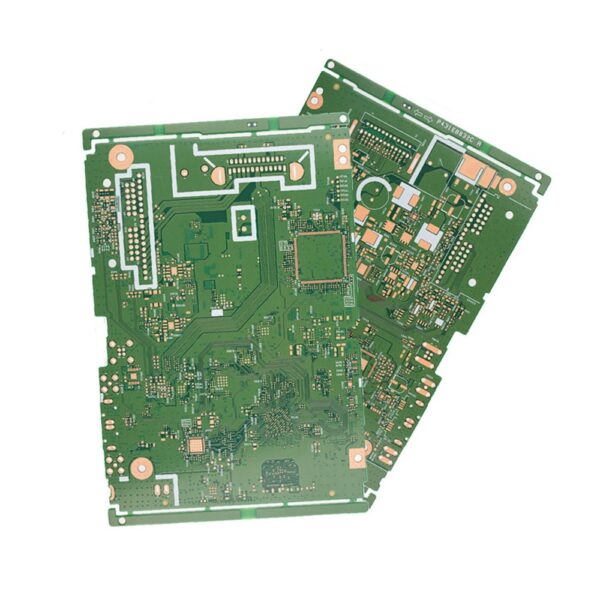

This multilayer HDI PCB is built for high-density layouts where routing space is limited and interconnect accuracy is critical. From the images, the board includes large fine-pitch pad arrays and tightly spaced copper traces, with multiple high-density zones that typically demand precise layer registration and reliable via structures. The surface shows gold-finish pad areas and clean solder mask definition, supporting dependable contact quality and consistent inspection results across complex designs.

For HDI fabrication, the real value is repeatability at scale. We control imaging and etching to maintain trace integrity, manage drilling and alignment to keep pad-to-via registration stable, and protect critical pad fields with consistent surface finishing. This helps OEM buyers reduce risk in compact products where small deviations can affect electrical performance or downstream integration. We also support DFM feedback based on your Gerber files—such as spacing optimization, via strategy, and panelization guidance—to improve yield and shorten iteration cycles from prototype validation to volume production.

As a Dongguan PCB manufacturing factory, we provide bare board fabrication only—no PCBA or assembly. If you need multilayer HDI boards for communication modules, control platforms, or compact computing hardware, this type of high-density PCB offers a strong foundation for reliable performance and scalable manufacturing.
